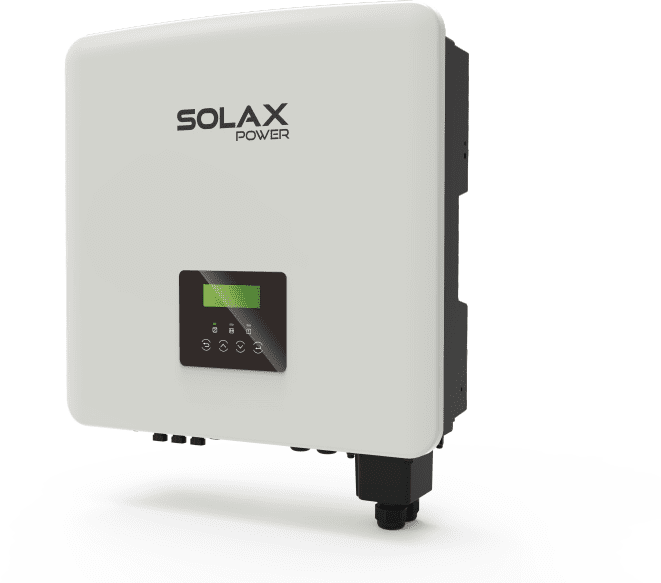

Solax X3-PRO 3 Phase Inverter 10.0kW

View all Solax X3 Pro String (Three Phase)

Solax X3-PRO 3 Phase Inverter 10.0kW
Solax X3-PRO 3 Phase Inverter 10.0kW
Solax X3-PRO 3 Phase Inverter 10.0kW

Quick Find: 22668
Part Code: X3-PRO-10.0
Weight: 24.50 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.

£825.75 ex VAT
£990.90 inc VAT
£990.90 inc VAT
£825.75 ex VAT
Stock Available: 2 Units
Qty

Estimated delivery: 1 working days

Day of Choice Delivery Available

Made To Order This is a made to order product and therefore cannot be returned or cancelled

Solax X3 Pro features:

  • Maximum efficiency is up to 98.5%
  • Low start up voltage, ultra-wide MPPT voltage range
  • 150% over sizing, 110% overloading output
  • Built-in shadow tracking function
  • SPD type II protection both AC&DC
  • ARC protection (Optional)
  • IP66 protection
  • Built-in export power control
  • Intelligent load management - heat pump (Optional)
  • 24 hours operation monitoring
  • Multiple monitoring methods, Pocket WiFi/LAN/4G (Optional)
  • Ultra-high power density
  • Maximum 16A DC input current, support high power solar panel
  • 2 MPPTs, 2 strings per MPPT



Technical specifications

AC rated power10 kW
BrandSolax Power
ConnectorMC4
Dimensions482 x 417 x 181 mm
IP ratingIP66
Max DC power15 kW
Maximum AC output current16
Maximum output apparent power11000
MPP voltage range160-980 V
MPPT quantity2
Nominal input voltage650
Start-up voltage200
Warranty10 years

Product downloads

SolaX X3 Pro Data Sheet
SolaX X3 Pro Data Sheet

File Size: 693.97 KB

Warranty Terms & Conditions
Warranty Terms & Conditions

File Size: 575.93 KB
